Chapter 16 Creating CORBA C++ Components

Generating required C++ files

You use Jaguar Manager to generate the C++ files that you need to compile into a DLL or UNIX shared library as well as a class implementation template in which to write method logic. These C++ files include:

Method skeletons file - Contains method routines that read the parameters from the network and call the method. The method skeletons also send the return status and output parameter data back to the client.
Class header file - Contains the method declarations only. This file is an included file in the method skeletons file and the class implementation template.
Class implementation template - Contains the class, method, and parameter declarations, as well as empty method definitions. You enter any business logic into the empty method definitions.
Stub interface files - Contain the interface definition for all components in a package, as well as definitions for user-defined types and exceptions used in your component's interface. Jaguar Manager creates these files when you generate C++ stubs for your component.
UNIX makefile - You use a makefile to compile the C++ source files into a UNIX shared library.
NT makefile and Microsoft Visual C++ module definition file - You use the makefile and a module definition file to compile the C++ source files into a DLL.

"Method call to a C++ component DLL or UNIX shared library" shows the flow of a client method call to a C++ component DLL or UNIX shared library.

The client invokes a method using the proxy or stub appropriate to the type of client ("Client stub/proxy support" explains the different client types). The stub or proxy sends the invocation information over the network to the Jaguar server.
The method skeleton in the method skeletons file unmarshals the call and makes a call to the method implementation in the class implementation template.
After the method executes, the method implementation returns the call to the method skeleton.
The method skeleton marshals the call and sends the call to the client.

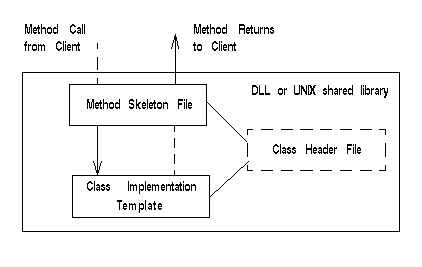

Method call to a C++ component DLL or UNIX shared library

The following figure shows the flow of a client method call to a C++ component DLL or UNIX shared library.

Figure 16-1: How C++ component methods are called

Procedure for generating required C++ files

To generate the required C++ files from a package or component, start Jaguar Manager and:

Select the component or, if you want to generate files for all components in a package, select the package.
In the Generate Stubs and Skeletons dialog, select the Generate Skeletons check box.
Configure the skeleton generation options as follows:
- C/C++ Code Base - Directory where the C/C++ skeleton files are created. When the window displays, the default is the Jaguar cpplib subdirectory. You can type a different path or use the Browse button to select one.
  The path must be a valid UNIX or Windows NT path. It can include a drive and as many directories as you want. You can use $JAGUAR or %JAGUAR% to specify the Jaguar installation directory. Other shell aliases such as "~" to indicate your home directory are not supported.

  If you clear the field, the default is the directory specified by $HOME for Solaris and %HOMEPATH% for NT.

  If you specify a relative path, such as "myclasses," the path is interpreted relative to the Jaguar html/classes directory.
- Java Code Base - Top-level directory under which the Java skeleton files are created. The skeletons are created in package subdirectories beneath the code base. Java skeletons are always created in the same package used by the component's implementation class.
  If you are generating skeletons for a package that contains both Java and C++ components, specify the location where generated Java skeletons are to be created. Otherwise, you can leave this field alone.
In the Generate Stubs and Skeletons dialog, select Generate Stubs.
Select the Generate C++ Stubs option.
Enter a value for the C/C++ Code Base field. This setting specifies the top-level directory path where generated files should be created.
The rules described for the C/C++ Code Base field under Generate Skeletons applies to this option as well.
You can create Java stub files at this time as well. "Generating Java stubs" describes how to configure the Java stubs options and compile the generated source files.
Click Generate. Jaguar Manager generates files that are appended with .new.
Rename the generated files, deleting .new.

File naming conventions

The generated component files are named as follows:

File type	File name
method skeletons file	package-name_component-name.cpp
class header file	class-name.hpp.new
class implementation template	class-name.cpp.new
stub interface file	package-name.hpp

where:

component-name is the name of the component that you defined in Jaguar Manager.

class-name is the class name that you specified when you created the component.

Jaguar Manager creates the directory structure based on the code base that you specify and the component name, as follows:

code_base/package_name/component_name

where:

code_base is the directory name in the Code Base field in Jaguar Manager. If the Code Base field does not contain a full path name, the directory will be located under the Jaguar installation directory, relative to the html/classes subdirectory.

package-name is the name of the package that contains the component.

component_name is the component name as displayed in Jaguar Manager.

Regenerating changed C++ component methods

When you add or delete methods or modify component method prototypes, you must regenerate the method skeletons and class header files. You must manually add, delete, or modify the methods in the class implementation template. Before you regenerate the method skeletons and class header files, make sure that you have moved your modified class implementation template to another directory or renamed it so the generated class implementation template does not overwrite your existing class implementation template.
